LARGE DELRIN

Swing Arm Protector Slider and Pickup Spools

With our standard Rear Stand we provide a universal set of mini-spools free of charge.

As not all Motorcycles are created equally, the mini-spools we supply may not suit all bikes.

Depending upon the swingarm shape, the spools may not project sufficiently and the stand pickups may touch the swingarm.

If this is so with your ride you will need to purchase a set of

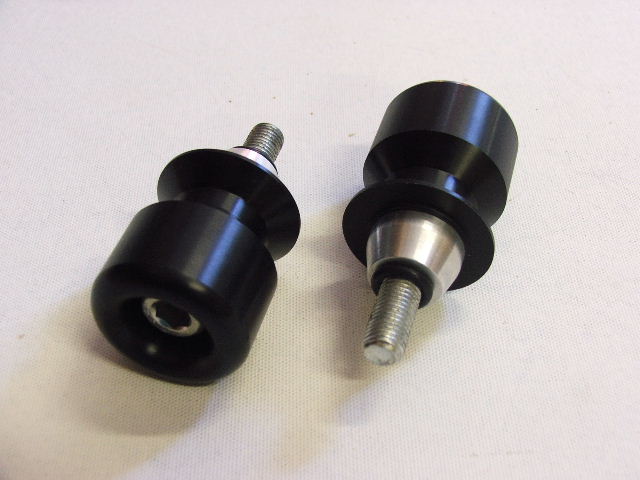

LARGE Swing Arm Protector Slider and Pickup Spools

These protectors/spools are an inexpensive way of helping to protect your motorbikes swing arm from damage in the event of an accident. They sit permanently on the swing arm and are housed to allow our Kaneg Rear Hooked Paddock Stand to engage. These protectors fill the function of our mini spools and frame sliders in one item.

These swing arm protectors are CNC machined from a
solid bar of 6061 grade aircraft aluminum.
They come as a pair and include the bolts that you will need to install them.

 If your bike has a threaded hole at the bottom of the swingarm, but you are not sure if it is a 6mm, 8mm or 10mm hole,
you can estimate its size by using a 1/4" or a 3/8" drill bit. If the 1/4" drill bit is just a hare too big to fit into the hole,
it is a 6mm hole. If the 1/4" drill bit goes all the way in the hole, but the 3/8" drill bit is too big, then it is an 8mm hole.
If the 3/8" drill bit goes in the hole or very close, it is a 10mm hole. As far as I know, it will either be 6mm, 8mm, or 10mm
as these are the only three sizes found on Japanese sportbikes

Round base diameter - 38mm

Height/ length - 57mm including Pacer

Bolt - 10mm x Standard 1.25mm pitch x 70mm Length

Black Delrin

This has to be the most inexpensive way of helping to Protect your Motorbike
